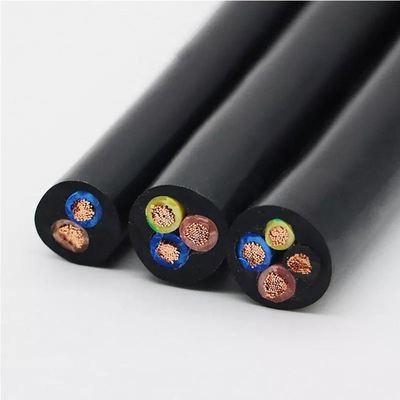

300/500V, 450/750V H07rn-F 4mm2 6mm2 10mm2 16mm2 25mm2 35mm2 Copper Conductor Epr Insulated Welding Flexible Electric Rubber Cable

Наименование марки:	ECHU
Номер модели:	Х07РН-Ф, Х05РН-Ф, YCW
минимальный заказ:	100 м
цена:	USD0.82-18.9/M
Условия оплаты:	Т/Т, Вестерн Юнион
Возможность поставки:	10000 км/неделю

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Шанхай, Китай

Сертификация:

CCC, CE

Сертификаты:

CCC, CE

производитель:

Эчу

Особенность:

Использование окружающей среды с высоким уровнем стресса

Ядер:

Одиночный, многоядерный

Термперат:

-30-+60℃

Гарантия:

12 месяцев

Тип проводника:

Застрял

Упаковка:

бросить или катушка

Основной:

Одиночный или Мульти-ядр

Упаковка:

Рулон

Тип:

НИЗКОЕ НАПРЯЖЕНИЕ, резиновый кабель

Материал проводника:

Медь

OEM-сервис:

Изготовление на заказ доступно

Количество проводников:

3С, СЕ

Упаковывая детали:

деревянная катушка/деревянный ящик

Поставка способности:

10000 км/неделю

Описание продукта

Basic Info.

Model NO.

H07rn-F H05rn-f YCW

Conductor Material

Copper

Sheath Material

Rubber

Insulation Material

Rubber

Material Shape

Round Wire

Range of Application

Mine

Certification

ISO9001, CE, CCC

Brand

ECHU

Engineer No.

206

Plant No.

3 Plant with 12 Workshop

Standard

En BS VDE IEC

Transport Package

Roll Drum

Specification

1.5-300mm2

Trademark

ECHU

Origin

China

HS Code

8544492100

Production Capacity

50000km/Month

Product Description

300/500V, 450/750V H07rn-F 4mm2 6mm2 10mm2 16mm2 25mm2 35mm2 copper conductor rubber insulated welding flexible electric Rubber cable

1.H05RN-F H07RN-F Rubber Cable

This cable is primarily used in all kinds of electrical equipment, such as the mobile power of household appliances, electric machinery,
electrical equipment and tools, and it is also can be used in indoor or outdoor enviroment conditions.

Conductor: Stranded bare or tinned soft copper wire

Insulation: rubber

Sheath: rubber

2.Specification And Working Condition:

1)The rated voltage for YQ type is 300/300 V, YZ/YZW type(H05RN-F) is 300/500V,YC/YCW type(H07RN-F) is 450/750V.

2)The long-term working temperature allowed by conductor should be not more than 60 ° C.

3)W-type cable with climate resistance and oil resistance, suitable for outdoors or in contact with oil occasions.

4)ZR type cable has flame retardant properties, can be used for fire-retardant occasions.

Code	IEC	Description	Voltage Design	Cores
H05RR-F	60245IEC 53(YZ)/YZ	Ordinary rubber sheathed cord	300/500V	2~6
H05RN-F	60245 IEC 57(YZW)/YZW	Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord	300/500V	2~6
H07RN-F	60245 IEC 66(YCW)/YC	Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable	450/750V	1~5, 3+1/3+2/4+1
H01N2-D	60245 IEC 81(YH)	Rubber sheathed arc-welding electrode cable	100/100V	10-120
60245 IEC 82(YHF)	polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable	100/100V	10-120

3.Advantages Of H07RN-F:

The H07RN-F cable is used at medium mechanical stress in dry, wet and damp locations, as well in free air.
Also for fixed installation on plaster or machines. The cable is resistant to oil, UV-radiation and ozone.

Flexible
The H07RN-F is a flexible cable, ideal for mobile use.
This means that the cable can be used several times and can be applied for temporary purposes.
In addition, it is easy to handle and pliant making it easy and compact to store.
Its flexibility is also an advantage for small-spaced fixed installations as smaller bends can be made. Due to the flexibility of the cable,
it is easier and faster to install, which saves more time and reduces costs.

Oil Resistant
The H07RN-F is oil resistant which means the cable can withstand aggressive oil containing substances.
These substances will not affect the cable, the functionality of the cable will be maintained and the risk of irreparable damage is lower.

UV Resistant
Cables that are not UV resistant will be affected when they are exposed to direct sunlight.
The H07RN-F is UV resistant and can therefore be used above ground in the open air.
The outer sheath of the cable will not be harmed by the ultra-violet light which normally dries out a cable or causes cracks or bursts in the sheath.
This will preserve the functionality of the cable.

Flame Retardant
Cables used to be responsible for spreading fire. The H07RN-F is flame retardant.
This means that this cable is designed in a way that it will not spread fire.
Cables with these advantages are often used in buildings and at locations where people live, work and travel / move.

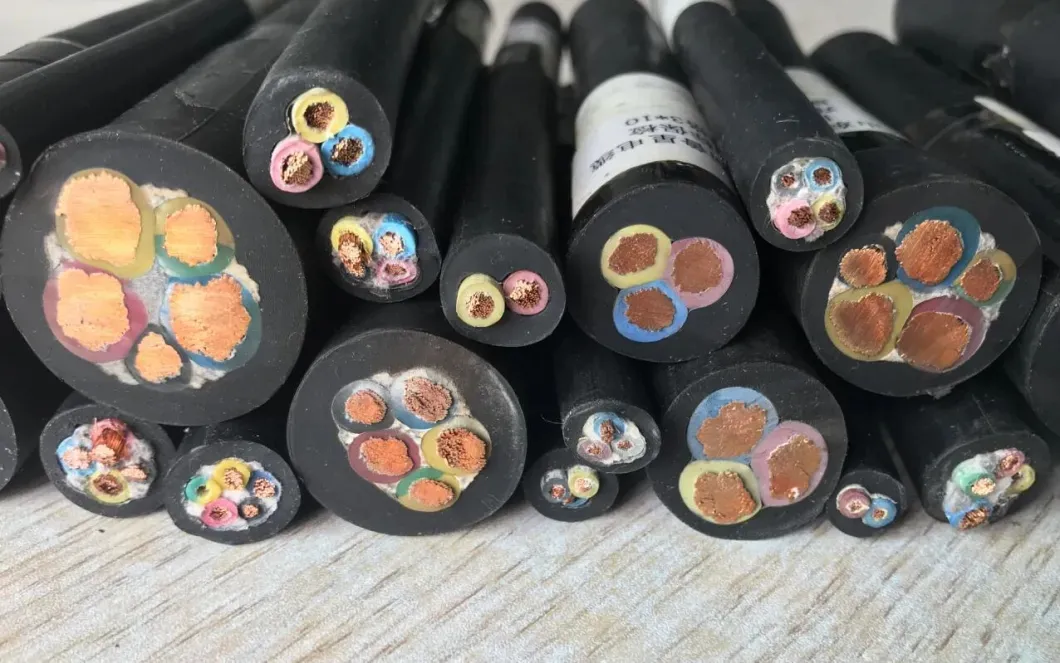

300/500V, 450/750V H07rn-F 4mm2 6mm2 10mm2 16mm2 25mm2 35mm2 Copper Conductor Epr Insulated Welding Flexible Electric Rubber Cable 0

300/500V, 450/750V H07rn-F 4mm2 6mm2 10mm2 16mm2 25mm2 35mm2 Copper Conductor Epr Insulated Welding Flexible Electric Rubber Cable 0

------Our Feature------

Imported equipment with experienced technical team
Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, ISO45001 Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
Perfect Production system
ECHU Cable products cover LV power cable , robot cable, drag chain cable, EV charging cable, UL cables, submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable etc.
Perfect Sales service system
ECHU Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. ECHU is always your best choice.

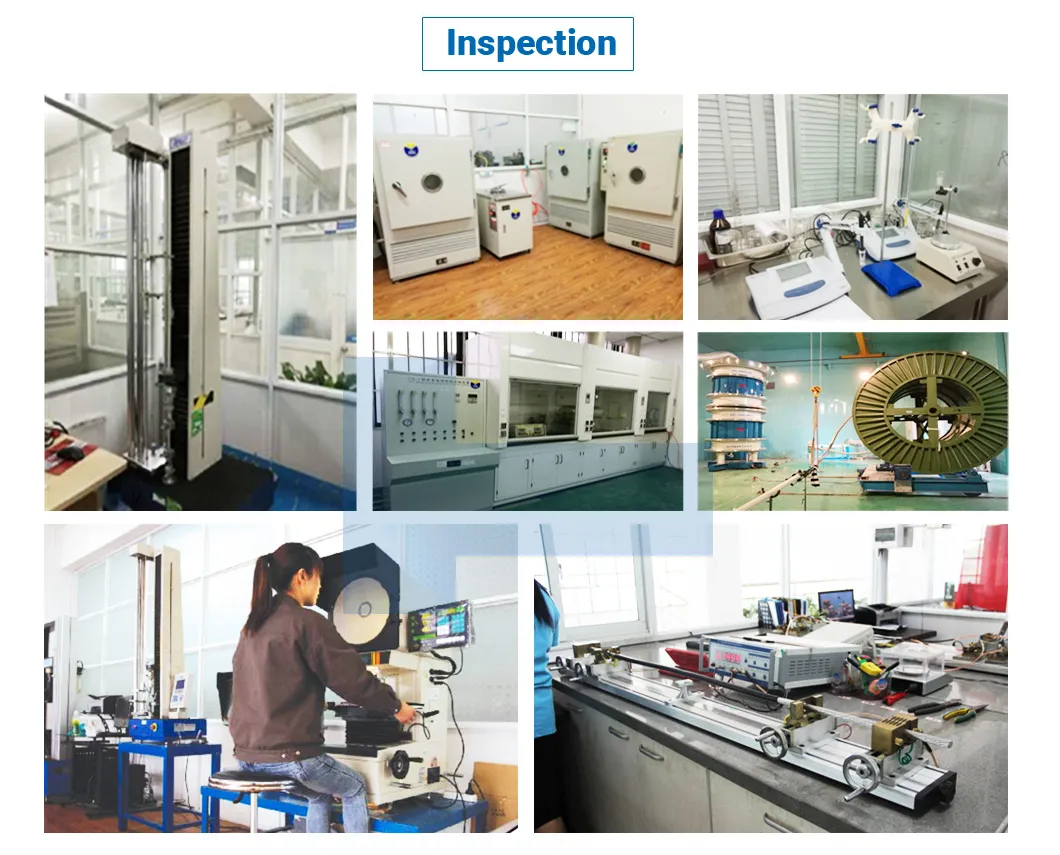

300/500V, 450/750V H07rn-F 4mm2 6mm2 10mm2 16mm2 25mm2 35mm2 Copper Conductor Epr Insulated Welding Flexible Electric Rubber Cable 1

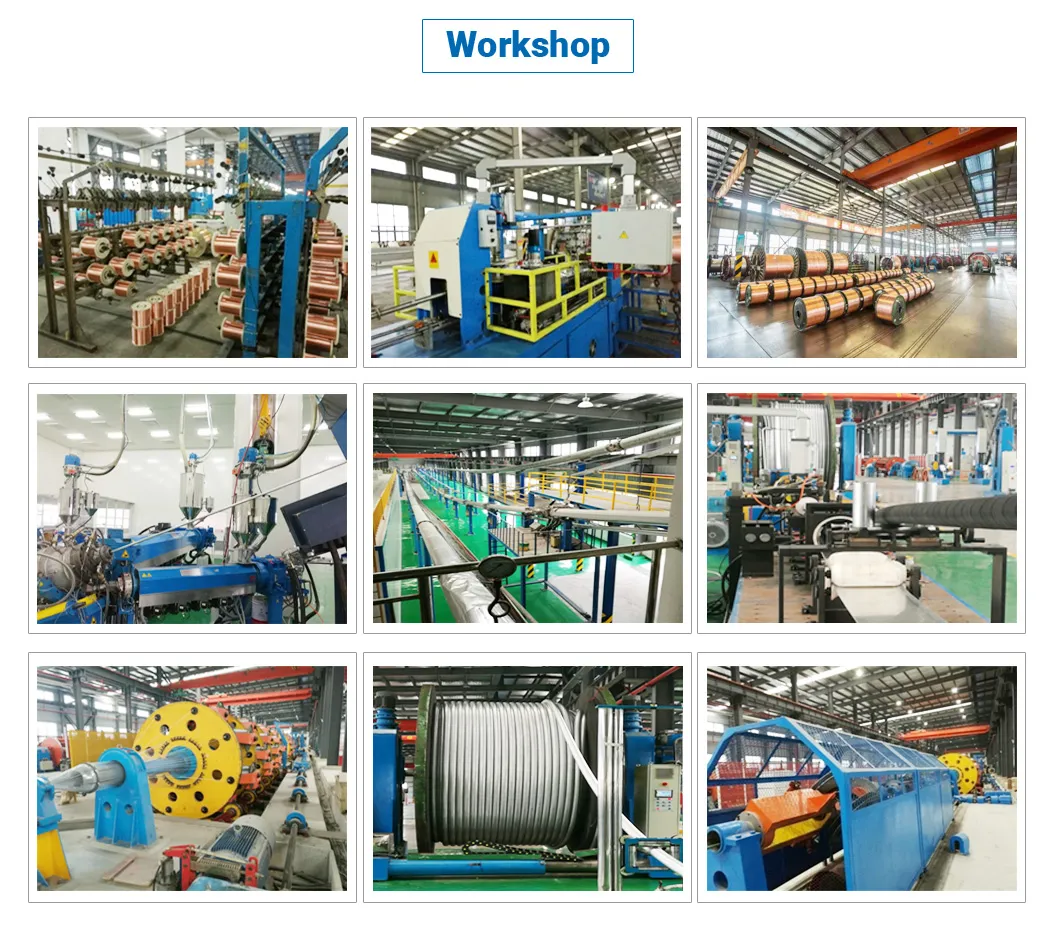

300/500V, 450/750V H07rn-F 4mm2 6mm2 10mm2 16mm2 25mm2 35mm2 Copper Conductor Epr Insulated Welding Flexible Electric Rubber Cable 2

Связанные продукты

Электрический провод и кабель

Кабель для катушек

Управляющий кабель

Кабель для плоского крана

Плоский каучуковый кабель

Плоский кабель лифта

Японский кабель

Подвесный кабель управления

Кабель питания

кабель передачи данных

Круглый кабель для электрических аппаратов

Круглый кабель лифта

Специальный кабель для кабельной цепи

UL Провод и кабель

Солнечные кабели

Кабель для хранения данных и кабель для электромобилей

Резиновый кабель

Специальный кабель

Электрический провод и кабель

Кабель для катушек

Управляющий кабель

Кабель для плоского крана

Плоский каучуковый кабель

Плоский кабель лифта

Японский кабель

Подвесный кабель управления

Кабель питания

кабель передачи данных

Круглый кабель для электрических аппаратов

Круглый кабель лифта

Специальный кабель для кабельной цепи

UL Провод и кабель

Солнечные кабели

Кабель для хранения данных и кабель для электромобилей

Резиновый кабель

Специальный кабель

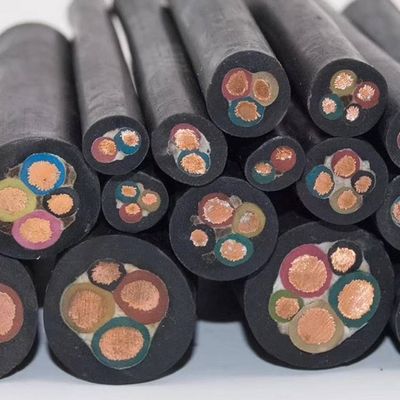

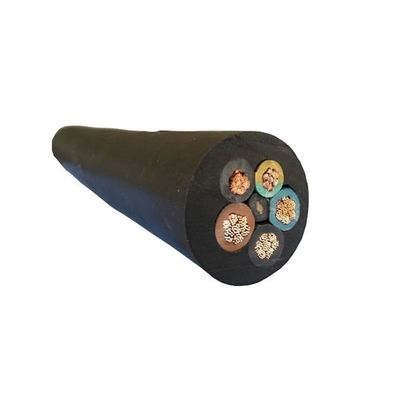

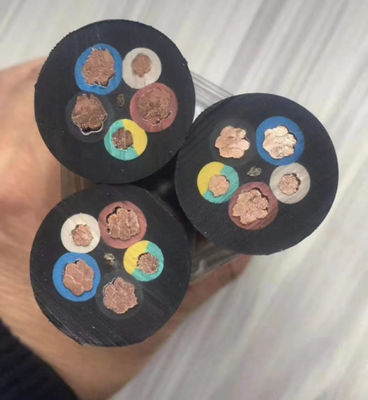

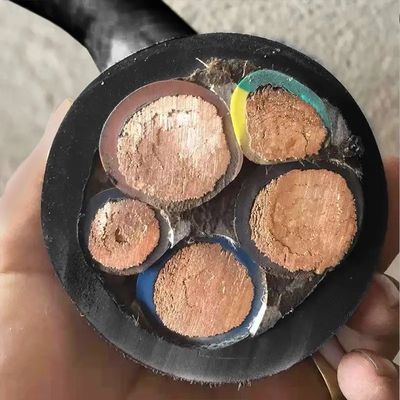

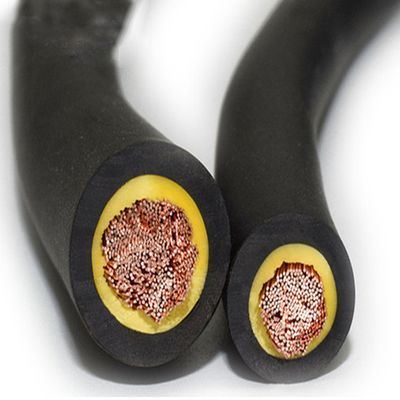

300/500V, 450/750V H07rn-F 4mm2 6mm2 10mm2 16mm2 25mm2 35mm2 Copper Conductor Epr Insulated Welding Flexible Electric Rubber Cable
